Integrated Propulsion system

*CAN protocol version available with MOQ. Contact us for more details. Propellers sold separately.

Overview
Spec
Download

Key features:
- Integrated & Ready-to-use Propulsion System
  The X8 brushless power system is a power system capable of carrying a load of 5~7kg (per rotor). It can provide a thrust of up to 15.3 kg and is compatible with 40/35mm carbon fiber tube arms for the D40 version or 35/30mm carbon fiber tube arms for the D35 version.
- FOC-based PMSM Algorithm Perfect Propulsion System
  The FOC (Field Oriented Control)-based PMSM (Permanent Magnet Synchronous Motor) algorithm, an optimized algorithm for improving the collaborative performance of the ESC, motor & propeller, makes the motor-propeller more balanced and creates a propulsion system that features high stability, reliability, and efficiency.
- Compared with the BLDC motors, the PMSM has a lot of advantages such as low noise, small size, high power density, low pulsating torque, and high control precision.
- Waterproof
  The X8 propulsion system is waterproof to IPX7 standard. It’s applicable to almost all the harsh working conditions (for agricultural applications) like rainwater, pesticides, salt spray, high temperature, sand and dust. Combined with the outlets at the bottom of the motor mount (note: patented design), you can directly rinse the system with freshwater after use.
- Multiple Protection Functions & Real-time Data Output
  The ESC included in the X8 power propulsion, which features a series of protection functions like power-on self test, power-on abnormal voltage, over-current motor lock-up, and can output the running data like input throttle, output throttle, RPM, input voltage & current, output current, capacitor temperature and MOS temperature to the FC (Flight Controller) in real time to allow the FC to know the running status of the (ESC & motor) power combo in real time, and improve the flight performance, efficiency and reliability of the drones.
- Using the Hobbywing DataLink data box (note: item sold separately) can record the real-time running data of 8 ESCs simultaneously and transmit those data to the FC via the Bus to form a closed-loop control system.)
- High-brightness LED Indicator
  The X8 propulsion system also contains a high-brightness LED indicator, you can choose the light color or disable it. It can provide the information about the working status of the system and send a warning when any abnormal issue occurs, that significantly improves the safety of the system.
- High Thrust & Efficiency Propeller (Purchased separately)
  The 3011 propeller made of special high-strength carbon fiber is solid and light, and guarantees great consistency and excellent dynamic balance. The optimized aerodynamic shape and unique blade tip design combined with the optimized electromagnetic design adopted by the motor and the high efficiency FOC (Field Oriented Control) algorithm implemented by the ESC guarantee the high thrust & efficiency of the propulsion system.
- Super Impact Resistance
  The high-strength CNC-machined aluminum alloy frame combined with the optimized structure design protect the motor components effectively, make the motor really impact-resistant, and greatly reduce the possibility of structure deformation/malfunction caused by drop or hit. Note: the internal strengthened cross beam structure (adopted by the motor) is an impact-resistant design patent;
  the triple inter-locking structure design is a Hobbywing patent.
- Modular Design Easy to Maintain
  The X8 propulsion system features a modular design. When it is damaged, you can change the damaged part like blades (single or two), the propeller adapter, or the integrated power combo (ESC+motor) easily and quickly.
- Regular Firmware Updates
  You can upgrade the ESC with the Hobbywing USB LINK software, a LCD program box (item sold separately) and a laptop. Hobbywing updates its ESC firmware regularly giving you upgraded features more often when available.
- Bulk order requests available.

Manual Download

IMPORTANT NOTE

X8 series is designed for Agricultural application or logistics transportation in farmland. Agricultural UAV features high thrust, heavy loaded, good anti-corrosive and anti-rust performance. Due to heavy motor/ESC, its thrust effect maybe lower compared to aerial photography UAV. It focuses on durability and longer term reliability. In contrast, Aerial photography UAV features a high thrust effect. It demands more reliability and stability than plant protection UAV. Due to the lightweight motor / ESC, it is not recommended to use it in a server / harsh environment. Propeller sold separately

Limited Warranty notes

Brushless power systems can be very dangerous. Any improper use may cause personal injury and damage to the product and related devices. We strongly recommend reading through this user manual before use. Because we have no control over the use, installation, or maintenance of this product, HOBBYWING does not accept any claims against the Xrotor X-series product. No liability may be assumed for any damage or losses resulting from the use of the product. For all damaged product cases, HOBBYWING will perform a damage assessment/inspection service. If the damage was caused by manufacturing defective parts, HOBBYWING is only responsible for the product cost and nothing else as a result of using HOBBYWING branded products. Props and connectors are considered "Accessory parts". There is no warranty on accessory parts.
HOBBYWING products purchased from Hong Kong / Chinese retailers deem products non-warranty in North America
Discount /auction stores such as eBay, etc are considered "non-authorized stores" in North America. Products deem non-warranty

Spec.
p/n	30410010015 / 30410010016
Max Thrust	15.3kg/Axis (48V, Sea Level )
Recommended LiPo Battery	12S LiPo
Recommended Takeoff Weight	5-7kg/Axis(48V，Sea Level)
Product Weight (ESC/Motor/Prop)	1040g
Waterproof Rating	IPX7
Operating Temperature	-20℃~50℃

Motor
Stator Size	81*20mm
KV Rating	100KV
O.D of Carbon Fiber Tube	Φ40mm (*Tube Adapter will be Needed)
Bearing	NSK Ball Bearing (Waterproof)
ESC
Recommended LiPo Battery	6-12S LiPo
PWM Input Signal Level	3.3V/5V (Compatible )
Throttle Signal Frequency	50-500Hz
Operating Pulse Width	1100-1940 μs (Fixed or cannot be Programmed )
Max. Input Voltage	52.2V
Max. Input Current (Cont.)	80 A(w/ Good Heat Dissipation )
Max. Peak Current (10s)	100 A (w/ Good Heat Dissipation )
BEC	No
Nozzle Mounting Holes	Φ28.4mm-2*M3

Propeller
Diameter×Thread Pitch	3011
Weight	180g

Voltage(V)	Propeller	Throttle(%)	Thrust	Ampere(A)	Power(W)	Efficiency(g/W)
48V(12S LIPO)	30 Inch Foldable Propeller	38%	2001	2.8	136.1	14.7
		45%	3009	5.0	243.7	12.3
		51%	3999	7.7	376.1	10.6
		56%	5012	10.9	529.9	9.5
		61%	5999	14.2	687.6	8.7
		66%	7013	18.1	879.3	8.0
		70%	7988	22.4	1083.3	7.4
		73%	9019	26.7	1293.1	7.0
		77%	9990	31.4	1519.2	6.6
		81%	11017	36.9	1781.7	6.2
		84%	12005	42.1	2033.6	5.9
		90%	13991	54.8	2640.1	5.3
		100%	15289	65.3	3134.9	4.9

Integrated Propulsion system

Limited Warranty notes

Learn more XRotor Pro X8 >

Special Offer - Xrotor Series

Price

Collections

XRotor PRO 40A ESC (Dual Pack)

XRotor 20A ESC COB

XRotor FPV Stack (4in1 ESC & FC )

XRotor X8 system (Integrated Propulsion System)

XRotor X13 Integrated Propulsion system

XRotor MFP 2270 propeller

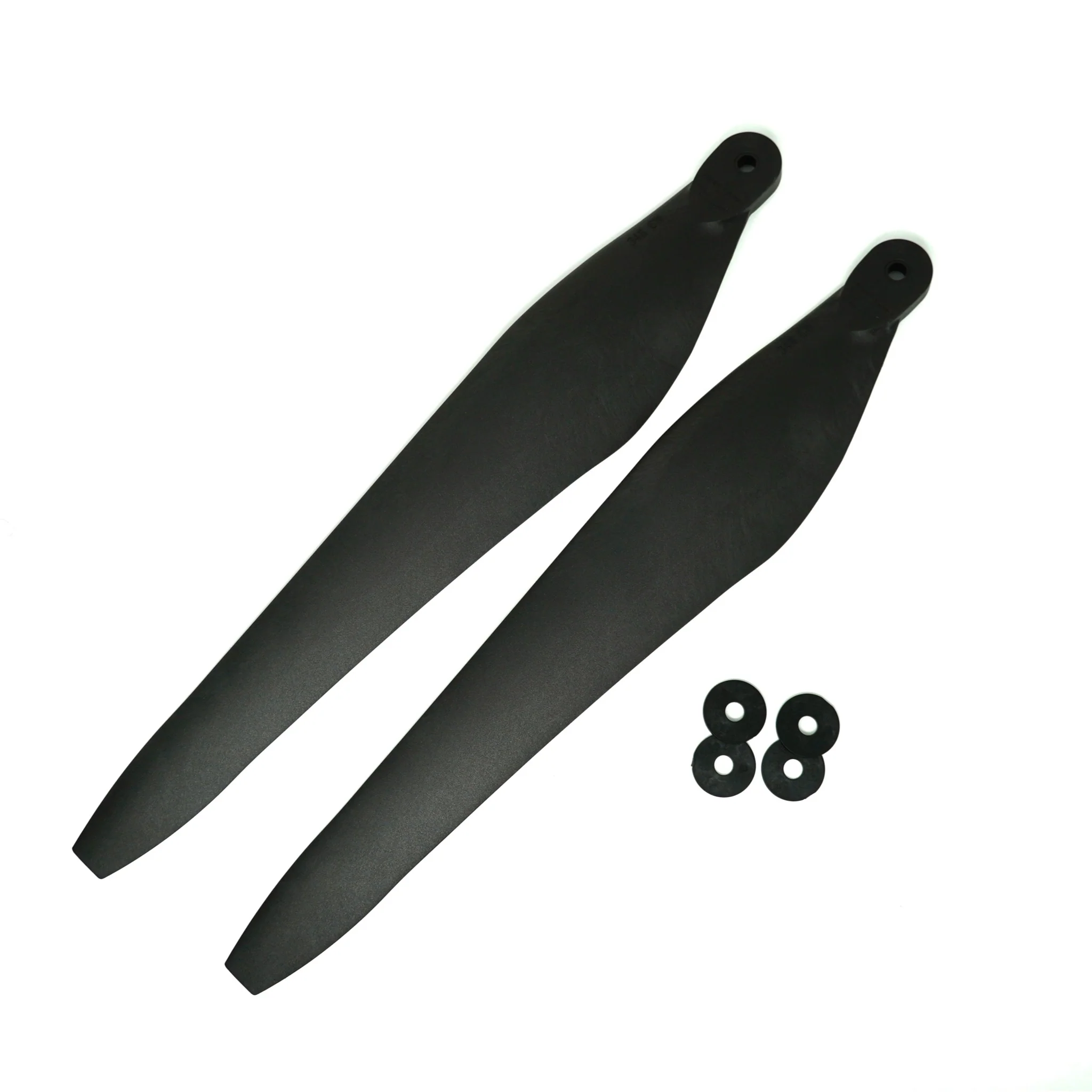

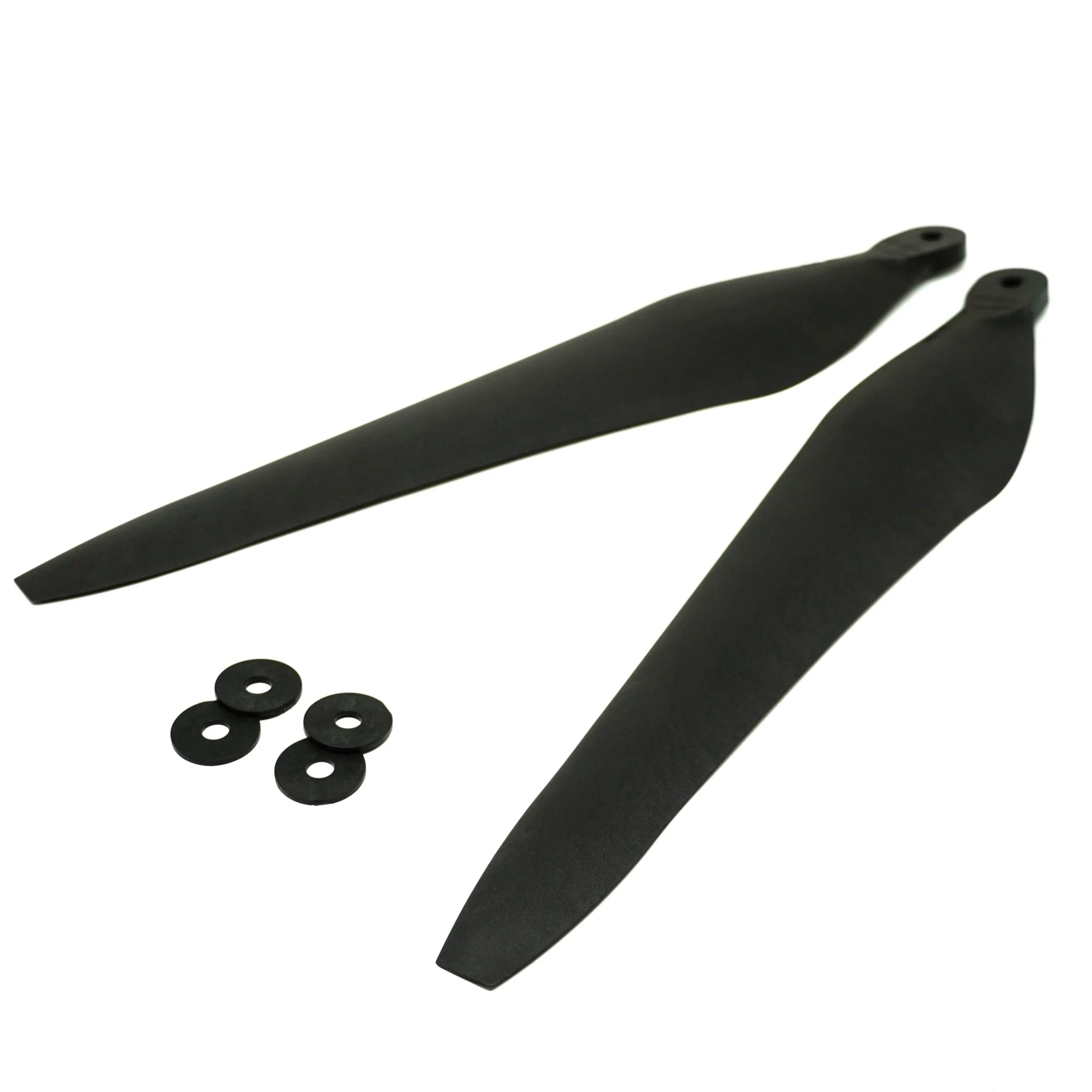

XRotor MFP 3411 Replacement Propellers for X9 - V2
