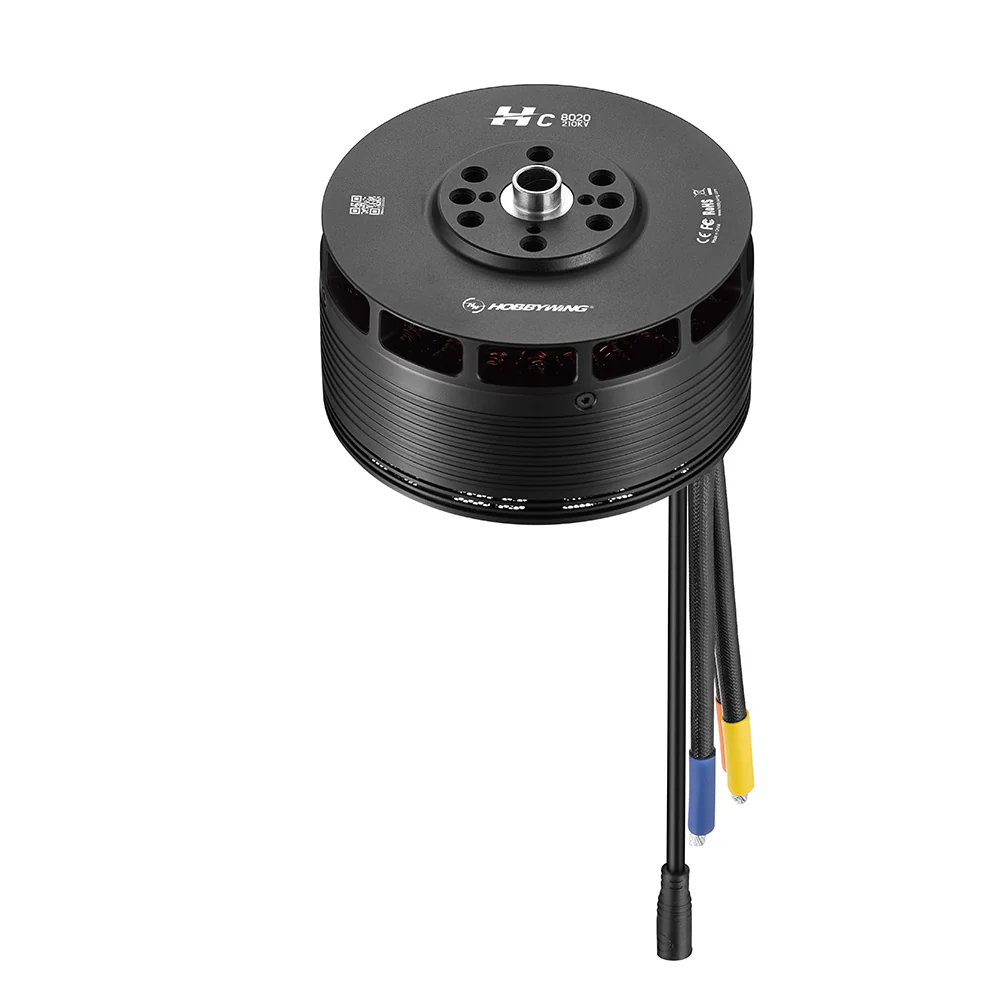

XRotor C8020 IPC Motor
High Powered Fixed-Wing UAV Cruise Motor
C8020 motor, designed for fixed-wing UAV cruise setups, provides up to a maximum thrust of 22.6kg per rotor with 24″ propellers, ideal for setup weighing 35 to 40kg at takeoff. The optional IPC version will allow you to flexibly adjust propeller stop position to reduce forward flight drag and increase flight time when matched with HOBBYWING IPC ESCs.
Specifications
| KV | 180KV | 210KV |
| Motor Size: | Φ89.1*H59.5mm | Φ89.1*H59.5mm |
| Weight W/ wire: | 834g | 838g |
|
Battery: |
12S | 12S |
|
Max Thrust: |
22.6kg | 22kg |
| Takeoff weight of single: | 35~40kg | 35~40kg |
| Rated power input | 1270W | 1430W |
| Rated power output | 1060W | 1180W |
| Prop: | 23x10/24x10/25x10 | 22x10/23x10 |
| ESC: | XRotor Pro H200A 14S / XRotor Pro H130A 14S | XRotor Pro H200A 14S / XRotor Pro H130A 14S |
| IPC Function: | YES | YES |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
XRotor C8020 IPC Motor
XRotor C8020 IPC Motor
High Powered Fixed-Wing UAV Cruise Motor
C8020 motor, designed for fixed-wing UAV cruise setups, provides up to a maximum thrust of 22.6kg per rotor with 24″ propellers, ideal for setup weighing 35 to 40kg at takeoff. The optional IPC version will allow you to flexibly adjust propeller stop position to reduce forward flight drag and increase flight time when matched with HOBBYWING IPC ESCs.
Specifications
| KV | 180KV | 210KV |
| Motor Size: | Φ89.1*H59.5mm | Φ89.1*H59.5mm |
| Weight W/ wire: | 834g | 838g |
|
Battery: |
12S | 12S |
|
Max Thrust: |
22.6kg | 22kg |
| Takeoff weight of single: | 35~40kg | 35~40kg |
| Rated power input | 1270W | 1430W |
| Rated power output | 1060W | 1180W |
| Prop: | 23x10/24x10/25x10 | 22x10/23x10 |
| ESC: | XRotor Pro H200A 14S / XRotor Pro H130A 14S | XRotor Pro H200A 14S / XRotor Pro H130A 14S |
| IPC Function: | YES | YES |
Original: $274.99
-65%$274.99
$96.25Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
High Powered Fixed-Wing UAV Cruise Motor
C8020 motor, designed for fixed-wing UAV cruise setups, provides up to a maximum thrust of 22.6kg per rotor with 24″ propellers, ideal for setup weighing 35 to 40kg at takeoff. The optional IPC version will allow you to flexibly adjust propeller stop position to reduce forward flight drag and increase flight time when matched with HOBBYWING IPC ESCs.
Specifications
| KV | 180KV | 210KV |
| Motor Size: | Φ89.1*H59.5mm | Φ89.1*H59.5mm |
| Weight W/ wire: | 834g | 838g |
|
Battery: |
12S | 12S |
|
Max Thrust: |
22.6kg | 22kg |
| Takeoff weight of single: | 35~40kg | 35~40kg |
| Rated power input | 1270W | 1430W |
| Rated power output | 1060W | 1180W |
| Prop: | 23x10/24x10/25x10 | 22x10/23x10 |
| ESC: | XRotor Pro H200A 14S / XRotor Pro H130A 14S | XRotor Pro H200A 14S / XRotor Pro H130A 14S |
| IPC Function: | YES | YES |
